Aluminium Ferrules for Wire Fune (DIN 3093/EN 13411-3 Standard)
Aluminium Wire Rope Aluminium

Aluminium Ferrules for Wire Fune (DIN 3093/EN 13411-3 Standard)

Features clavis:
fabricari per EN 13411-3 / DIN 3093 standard
Aluminium alloy
Praesto sizes: #1 ad #60
Ipsae rationes internae pro secure swaging
Leve et corrosio repugnans
Idoneum pro uno vel duplici oculo terminationes
Compatible cum maxime filum funem materiae

Applicationes:
Aluminium ferrules hae late in usu sunt;
systemata elevatio et armamenta
Constructio ecclesiis levandis
Marinus et remote retinacula retinacula
Grues et pontibus
Generalis filum industriae funem terminationes

Aluminium ovale-genus theodiscum ferrules ordinantur ad terminationes oculi permanentes in comitiis filis funiculi destinatis. Fabricata secundum EN 13411-3 (DIN 3093), hae ferulae fiunt ex aluminio praecipuo qualitatis mixturae quae requisita compositioni chemicae et mechanicae operationi obtemperat.

Ferrules praesto sunt a magnitudine #1 ad #60, plenam amplitudinem optionum praebentes pro funes filum diametri diversarum. Quisque ferrule est subtilitas machinalis ad crassitudinem parietis consistentis, procurans securam et certam clavum perficiendi.

Cum compressi congruis fasciculis instrumentis, aluminium ferrules solidam connexionem mechanicam formant quae restis vim frangendi sustinet et slippage impedit. Materia levis etiam praebet repugnantiam corrosioni et deformationis

Contacta nos
PRAEVISUM: Seamless Aluminium circum manicas pro Filo Funis Terminatio
SEQUENS: Nullus articulus sequens

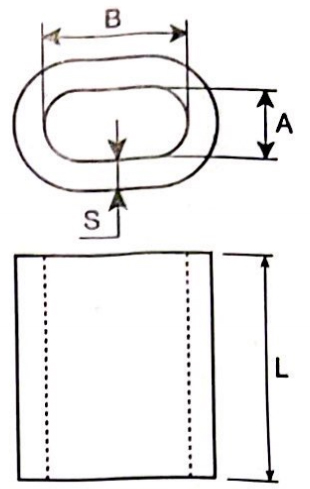

  • Pars No. Ferrule Codicis. Dimensio (mm) Pondus (KGS/100PCS)

    GB6946-93

    L(mm)

    A B S L
    GMC140010 1 1.2 2.4 0.65 5 0.098 -
    GMC140015 1.5 1.7 3.4 0.75 6 0.176 -
    GMC140020 2 2.2 4.4 0.85 7 0.285 -
    GMC140025 2.5 2.7 5.4 1.05 9 0.439 -
    GMC140030 3 3.3 6.6 1.25 11 0.907 -
    GMC140035 3.5 3.8 7.6 1.5 13 1.18 -
    GMC140040 4 4.4 8.8 1.7 14 1.63 -
    GMC140045 4.5 4.9 9.8 1.9 16 2.39 -
    GMC140050 5 5.5 11 2.1 18 3.62 -
    GMC140060 6 6.6 13.2 2.5 21 5.87 25
    GMC140065 6.5 7.2 14.4 2.7 23 7.18 -
    GMC140070 7 7.8 15.6 2.9 25 9.83 30
    GMC140080 8 8.8 17.6 3.3 28 12.96 34
    GMC140090 9 9.9 19.8 3.7 32 18.94 38
    GMC140100 10 10.9 21.8 4.1 35 24.09 42
    GMC140110 11 12.1 24.2 4.5 39 35.35 47
    GMC140120 12 13.2 26.4 4.9 42 44.18 50
    GMC140130 13 14.2 28.4 5.4 46 59.86 55
    GMC140140 14 15.3 30.6 5.8 49 73.5 59
    GMC140160 16 17.5 35 6.7 56 111 67
    GMC140180 18 19.6 39.2 7.6 63 156 76
    GMC140200 20 21.7 43.4 8.4 70 217 84
    GMC140220 22 24.3 48.6 9.2 77 292 92
    GMC140240 24 26.4 52.8 10 84 376 101
    GMC140260 26 28.5 57 10.9 91 481 109
    GMC140280 28 31.0 62 11.7 98 603 118
    GMC140300 30 33.1 66.2 12.5 105 739 126
    GMC140320 32 35.2 70.4 13.4 112 897 134
    GMC140340 34 37.8 75.6 14.2 119 1077 143
    GMC140360 36 39.8 79.6 15 126 1275 152
    GMC140380 38 41.9 83.8 15.8 133 1503 160
    GMC140400 40 44 88 16.6 140 1734 168
    GMC140420 42 46.2 92.4 17.5 147 2024 -
    GMC140440 44 48.4 96.8 18.3 154 2314 184
    GMC140460 46 50.6 101.2 19.2 161 2662 -
    GMC140480 48 52.8 105.6 20 168 3010 200
    GMC140500 50 55 110 20.8 175 3412 -
    GMC140520 52 57.2 114.4 21.6 182 3813 216
    GMC140540 54 59.4 118.8 22.5 189 4293 -
    GMC140560 56 61.6 123.2 23.2 196 4772 232
    GMC140580 58 63.8 127.6 24.2 203 5326 -
    GMC140600 60 66 132 25 210 5880 248

    Pars No. Ferrule Code. A(mm) B(mm) S(mm) L(mm) Pondus (KGS/100PCS)

    GB6946-93

    L(mm)

    SL990010 1 1.2 2.4 0.65 5 0.098
    SL990015 1.5 1.7 3.4 0.75 6 0.176
    SL990020 2 2.2 4.4 0.85 7 0.285
    SL990025 2.5 2.7 5.4 1.05 9 0.439
    SL990030 3 3.3 6.6 1.25 11 0.907
    SL990035 3.5 3.8 7.6 1.5 13 1.18
    SL990040 4 4.4 8.8 1.7 14 1.63
    SL990045 4.5 4.9 9.8 1.9 16 2.39
    SL990050 5 5.5 11.0 2.1 18 3.62
    SL990060 6 6.6 13.2 2.5 21 5.87 25
    SL990065 6.5 72 14.4 2.7 23 7.18
    SL990070 7 7.8 15.6 2.9 25 9.83 30
    SL990080 8 8.8 17.6 3.3 28 12.96 34
    SL990090 9 9.9 19.8 3.7 32 18.94 38
    SL990100 10 10.9 21.8 4.1 35 24.09 42
    SL990110 11 12.1 24.2 4.5 39 35.35 47
    SL990120 12 13.2 26.4 4.9 42 44.18 50
    SL990130 13 14.2 28.4 5.4 46 59.86 55
    SL990140 14 15.3 30.6 5.8 49 73.5 59
    SL990160 16 17.5 35.0 6.7 56 111 67
    SL990180 18 19.6 39.2 7.6 63 156 76
    SL990200 20 21.7 43.4 8.4 70 217 84
    SL990220 22 24.3 48.6 9.2 77 292 92
    SL990240 24 26.4 52.8 10.0 84 376 101
    SL990260 26 28.5 57.0 10.9 91 481 109
    SL9902B0 28 31.0 62.0 11.7 98 603 118
    SL990300 30 33.1 66.2 12.5 105 739 126
    SL990320 32 35.2 70.4 13.4 112 897 134
    SL990340 34 37.8 75.6 14.2 119 1077 143
    SL990360 36 39.8 79.6 15.0 126 1275 152
    SL990380 38 41.9 83.8 15.8 133 1503 160
    SL990400 40 44.0 88.0 16.6 140 1734 168
    SL990420 42 46.2 92.4 17.5 147 2024
    SL990440 44 48.4 96.8 18.3 154 2314 184
    SL990460 46 50.6 101.2 19.2 161 2662
    SL990480 48 52.8 105.6 20.0 168 3010 200
    SL990500 50 55.0 110.0 20.8 175 3412
    SL990520 52 57.2 114.4 21.6 182 3813 216
    SL990540 54 59.4 118.8 22.5 189 4293
    SL990560 56 61.6 123.2 23.3 196 4772 232
    SL990580 58 63.8 127.6 24.2 203 5326
    SL990600 60 66.0 132.0 25.0 210 5880 248
