Calidum Dip Galvanized Occumbo Forged Anchor Shackles
  • Calidum Dip Galvanized Occumbo Forged Anchor Shackles
  • Calidum Dip Galvanized Occumbo Forged Anchor Shackles
Filum Funis Shackle

Calidum Dip Galvanized Occumbo Forged Anchor Shackles

Features:
Materia: Occumbo ferro ensem cum intinge galvanization

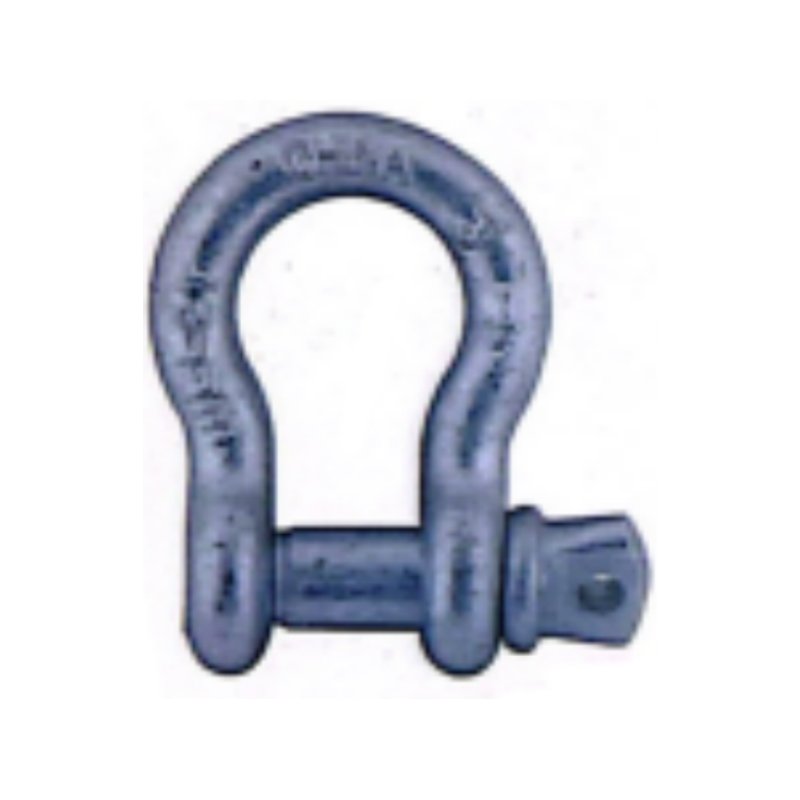

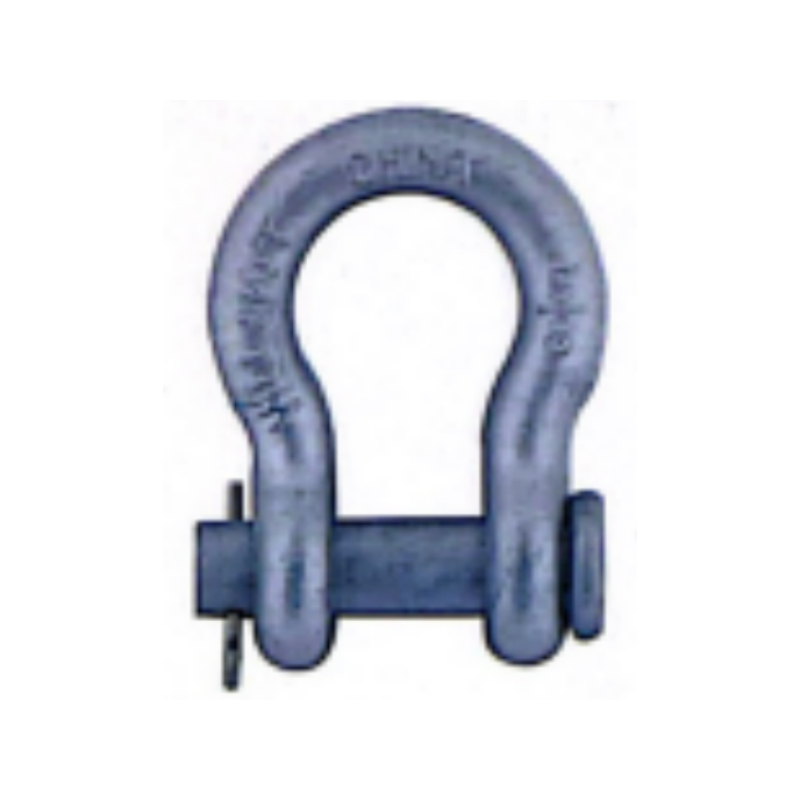

Type: Anchora Shackle, available in Screw Pin or round Pin
Applicatio: Gravis-officium elevatio, armamenta et nexus industriae
Multi-directional onus distributio pro tuta operatione
Amplis Laboris Load limites (0.33 - 55 tons)
Designed for durability and long service life

Typicam Applications:
Elevatio et levatio res
constructio et armamenta industriae
Marinus et remote systemata elevatio
Vincula vincla, funiculorum filum, et fundas in applicationes gravia

Hot-intinge galvanizatae guttae ancorae compedes fictae sunt, robusti componentes elevatio et armamenta constituunt ut nexus secures in quaerendis ambitibus industrialibus, marinis et constructionibus praebeant. Ex ferro solidae fortitudinis guttatim factae et galvanizationis tingui calidae obductae, hae compedes eximii firmitatis, corrosionis resistentiae, et mechanicae operationis sub oneribus gravia liberant.

Anchora dica consilio permittit pro multi-directionali oneris distributione, nexus stabilis ac tutae pro catenis, funibus filis et fundis praestandi. Praesto cochleae clavo ac rotundo acus species, hae compedes amplis limitibus oneris operandi tegunt, easque aptas efficiunt ad varias tollendas, levandas, armandas applicationes..

Contacta nos
PRAEVISUM: Nullus articulus prior
SEQUENS: Galvanized DIN (82101) forma Shackle

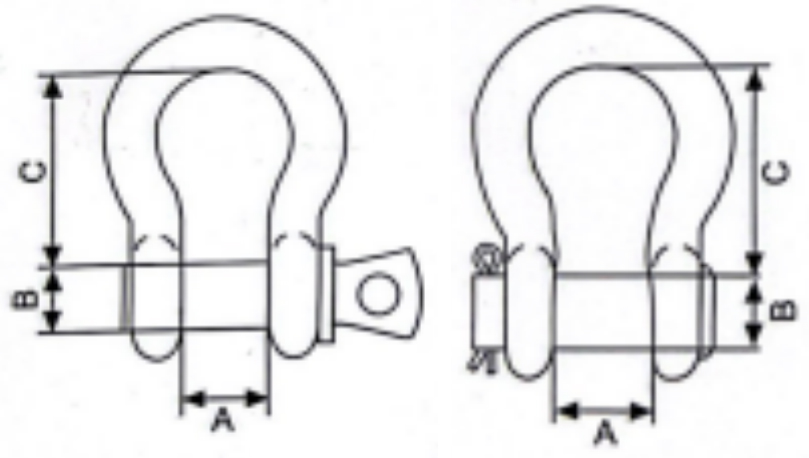

  • Stock No. Nominal Size (IN) W.L.L. Dimension(IN) Pondus
    LBS/PC
    Screw Pin Type     		Pondus
    LBS/PC
    Per Pin Type
    A B C
    GMC53M05A82101 3/16 0.33 0.38 0.25 0.88 0.06 0.06
    GMC53M06A82101 1/4 0.50 0.47 0.31 1.13 0.10 0.13
    GMC53M08A82101 5/16 0.75 0.53 0.38 1.22 0.19 0.18
    GMC53M10A82101 3/8 1.00 0.66 0.44 1.44 0.31 0.29
    GMC53M12A82101 7/16 1.50 0.75 0.50 1.69 0.38 0.38
    GMC53M16A82101 1/2 2.00 0.81 0.63 1.88 0.72 0.71
    GMC53M20A82101 5/8 3.25 1.06 0.75 2.38 1.37 1.50
    GMC53M22A82101 3/4 4.75 1.25 0.88 2.81 2.35 2.32
    GMC53M24A82101 7/8 6.50 1.44 1.00 3.31 3.62 3.49
    GMC53M27A82101 1 8.50 1.69 1.13 3.75 5.03 5.00
    GMC53M30A82101 1 1/8 9.50 1.81 1.25 4.25 7.41 6.97
    GMC53M36A82101 1 1/4 12.00 2.03 1.38 4.69 9.05 9.75
    GMC53M39A82101 1 3/8 13.50 2.25 1.50 5.25 13.53 13.25
    GMC53M45A82101 1 1/2 17.00 2.38 1.63 5.75 17.20 17.25
    GMC53M48A82101 1 3/4 25.00 2.88 2.00 7.00 27.78 29.46
    GMC53M52A82101 2 35.00 3.25 2.25 7.75 45.00 45.75
    GMC53M60A82101 2 1/2 55.00 4.13 2.75 10.50 85.75 87.12

    Stock No. Nominal Size (IN) W.L.L. Dimensiones (IN) Pondus(LBS)
    Screw Pin Type     		Pondus(LBS)
    Per Pin Type
    A B C
    HGLR316SPAS/RPAS 3/16 1/3 0.38 0.25 0.88 0.06 0.06
    HGLR014SPAS/RPAS 1/4 1/2 0.47 0.31 1.13 0.10 0.13
    HGLR516SPAS/RPAS 5/16 3/4 0.53 0.38 1.22 0.19 0.18
    HGLR038SPAS/RPAS 3/8 1 0.66 0.44 1.44 0.31 0.29
    HGLR716SPAS/RPAS 7/16 1 1/2 0.75 0.50 1.69 0.38 0.38
    HGLR012SPAS/RPAS 1/2 2 0.81 0.63 1.88 0.72 0.71
    HGLR058SPAS/RPAS 5/8 3 1/4 1.06 0.75 2.38 1.37 1.50
    HGLR034SPAS/RPAS 3/4 4 3/4 1.25 0.88 2.81 2.35 2.32
    HGLR078SPAS/RPAS 7/8 6 1/2 1.44 1.00 3.31 3.62 3.49
    HGLR001SPAS/RPAS 1 8 1/2 1.69 1.13 3.75 5.03 5.00
    HGLR118SPAS/RPAS 1 1/8 9 1/2 1.81 1.25 4.25 7.41 6.97
    HGLR114SPAS/RPAS 1 1/4 12 2.03 1.38 4.69 9.05 9.75
    HGLR138SPAS/RPAS 1 3/8 13 1/2 2.25 1.50 5.25 13.53 13.25
    HGLR112SPAS/RPAS 1 1/2 17 2.38 1.63 5.75 17.20 17.25
    HGLR134SPAS/RPAS 1 3/4 25 2.88 2.00 7.00 27.78 29.46
    HGLR002SPAS/RPAS 2 35 3.25 2.25 7.75 45.00 45.75
    HGLR212SPAS/RPAS 2 1/2 55 4.13 2.75 10.50 85.75 87.12
